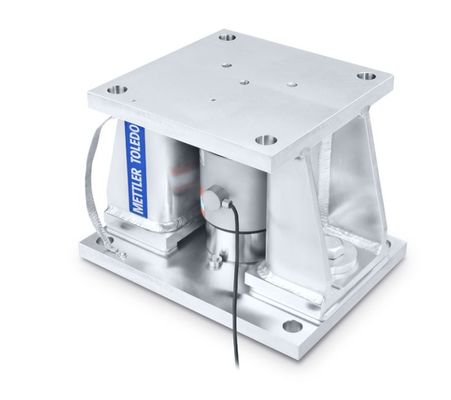

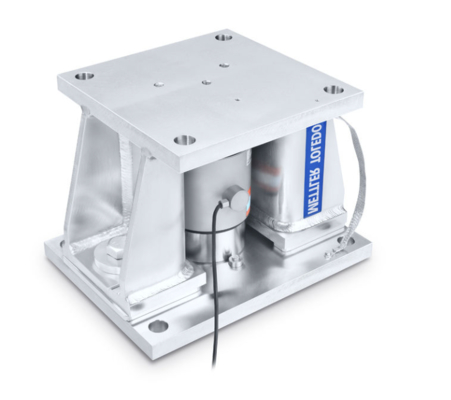

Name: 200t Weighing Module SWC515-PM CS Industrial Compression Load Cell in Carbon Steel
Brand: SMARTWEIGH INSTRUMENT CO.,LTD
SKU: Wägemodul SWC515 PM CS 200t
Availability: InStock

Startseite Produkte

200t Weighing Module SWC515-PM CS Industrial Compression Load Cell in Carbon Steel

Produktdetails:

Herkunftsort:	China
Markenname:	Mettler Toledo
Modellnummer:	Wägemodul SWC515 PM CS 200t

Zahlung und Versand AGB:

Min Bestellmenge:	1 SATZ
Preis:	Verhandlungsfähig
Verpackung Informationen:	Karonenschachtel
Lieferzeit:	10-30 Tage
Versorgungsmaterial-Fähigkeit:	2000 eingestellt pro Monat

Kontakt

Ausführliche Produkt-Beschreibung

Erzeugnis:	Mettler Toledo Wägezelle	Höchstkapazität:	200.000 lb (90.718,47 kg)
Material:	Kohlenstoffstahl	Metrologie:	Genauigkeit 0,05%
Lastzelle:	0782/GD	Genauigkeit:	Niedrig
Schutzbewertung:	IP68/69k	Umgebung / Material:	Normaler / Kohlenstoffstahl
Gefährliche Zulassung:	ATEX, FM	Kritik:	Standard
Kabel:	66 Fuß (20 m)
Hervorheben:	200t compression load cell , carbon steel weighing module , industrial load cell with warranty

200t Weighing Module SWC515-PM CS Industrial Compression Load Cell in Carbon Steel

Product Overview

A compression weigh module designed for industrial applications where its top plate and base plate compress under load. Ideal for direct attachment to ground, piers, or structural beams. Commonly used in multiples for large platform scales including truck and railroad track scales, as well as tank, hopper, and silo weighing systems. Capacity range from 3 kg to 300 tons.

Key Features

Multi-Purpose Design: Suitable for static & dynamic tanks, hoppers, mixers, and conveyors with high accuracy stainless hermetic load cell
Enhanced Safety: Features 360° self-checking, dual lift-off & down-stops, ground strap, hazardous approvals & IP68 stainless load cell
Easy Installation: Low profile design with alignment and rigid locking mechanism, installable with or without load cell

Technical Specifications

Attribute	Value
Product	Mettler Toledo Load Cell
Maximum Capacity	440,000 lb (200,000 kg)
Material	Carbon Steel
Metrology	Accuracy 0.05%
Load Cell	0782/GD
Accuracy	Low
Protection Rating	IP68/69k
Environment/Material	Normal/Carbon Steel
Hazardous Approval	ATEX, FM
Criticality	Standard
Cable	66 ft (20 m)
