Name: 22.5 Ton SWC515-A SS Weigh Module – Stainless Steel Load Cell
Brand: SMARTWEIGH INSTRUMENT CO.,LTD
SKU: Wägemodul SWC515-A SS 22.5t
Availability: InStock

Startseite Produkte

22.5 Ton SWC515-A SS Weigh Module – Stainless Steel Load Cell

Produktdetails:

Herkunftsort:	China
Markenname:	Mettler Toledo
Modellnummer:	Wägemodul SWC515-A SS 22.5t

Zahlung und Versand AGB:

Min Bestellmenge:	1 SATZ
Preis:	Verhandlungsfähig
Verpackung Informationen:	Caron-Kasten
Lieferzeit:	10-30 Tage
Versorgungsmaterial-Fähigkeit:	2000 eingestellt pro Monat

Kontakt

Ausführliche Produkt-Beschreibung

Erzeugnis:	Mettler Toledo Wägezelle	Höchstkapazität:	49,500 lb (22.500 kg)
Material:	Edelstahl V2A (AISI 304)	Metrologie:	NTEP III 5.000d OIML C3
Lastzelle:	12 m langes Kabel SLC611	Genauigkeit:	Standard
Schutzbewertung:	IP68/69k	Umgebung / Material:	Wasch-down / Edelstahl
Gefährliche Zulassung:	ATEX, FM	Kritikalität:	Standard
Hervorheben:	22.5 ton stainless steel weigh module , SWC515-A load cell with warranty , Mettler Toledo stainless steel load cell

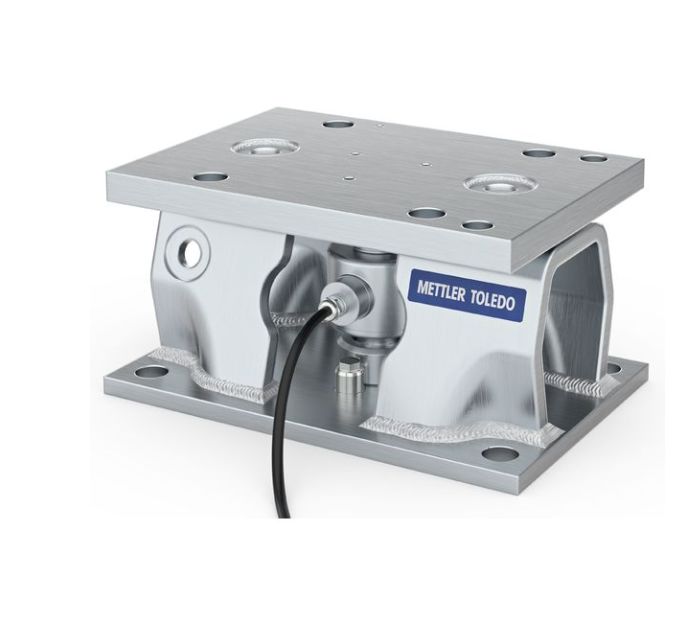

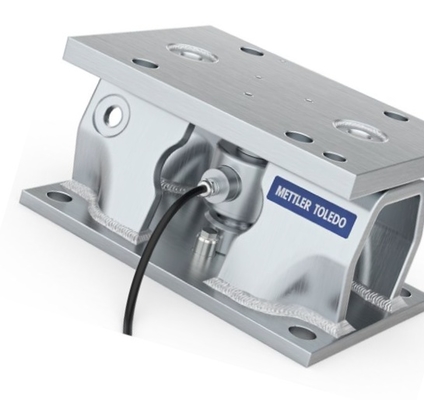

22.5 Ton SWC515-A SS Weigh Module – Stainless Steel Load Cell

Product Overview

A compression weigh module designed for direct attachment to ground, piers, or structural beams. When weight is applied, the top plate and base plate compress toward each other. Ideal for large platform scales including truck and railroad track scales, as well as tank, hopper, and silo weighing applications. Capacity ranges from 3 kg to 300 tons.

Key Features

Multi Purpose - Always Suitable

For static & dynamic tanks, hoppers, mixers & conveyors. Features a high accuracy, fully approved stainless hermetic load cell suitable for all applications.

No Compromise on Safety

Includes mechanical safety features (360° self-checking, lift-off & down-stops protections), hazardous approvals & IP68 load cells for maximum reliability.

Right the First Time

Fast and straightforward installation without damaging the Load Cell, thanks to the SafeLock™ plates. Integrated space for hydraulic jack included.

Technical Specifications

Product	Mettler Toledo Load Cell
Maximum Capacity	49,500 lb (22,500 kg)
Material	Stainless Steel V2A (AISI 304)
Metrology	NTEP III 5,000d OIML C3
Load Cell	12 m cable SLC611
Accuracy	Standard
Protection Rating	IP68/69k
Environment / Material	Wash-down / Stainless Steel
Hazardous Approval	ATEX, FM
Criticality	Standard
