Name: Weigh Module 0970 500kg C3 NOJ – Load Cell for Platform and Hopper Scales
Brand: SMARTWEIGH INSTRUMENT CO.,LTD
SKU: Gewichtsmodul 0970 500 kg C3 NOJ
Availability: InStock

Startseite Produkte

Weigh Module 0970 500kg C3 NOJ – Load Cell for Platform and Hopper Scales

Produktdetails:

Herkunftsort:	CHINA
Markenname:	Mettler Toledo
Modellnummer:	Gewichtsmodul 0970 500 kg C3 NOJ

Zahlung und Versand AGB:

Min Bestellmenge:	1 SATZ
Preis:	Verhandlungsfähig
Verpackung Informationen:	Caron-Kasten
Lieferzeit:	10-30 Tage
Versorgungsmaterial-Fähigkeit:	2000 eingestellt pro Monat

Kontakt

Ausführliche Produkt-Beschreibung

Erzeugnis:	Mettler Toledo Wägezelle	Höchstkapazität:	1,120 lb (500 kg)
Material:	WM 316L, LC 17-4PH	Metrologie:	NTEP III 5M, OIML C3
Lastzelle:	5 m (16,6 ft) Kabel RLC	Genauigkeit:	Hoch
Schutzbewertung:	IP68/69k	Umgebung / Material:	Häufiges Abwaschen / Hygienisch
Gefährliche Genehmigung:	ATEX, FM	Kritik:	Standard
Hervorheben:	500kg weigh module load cell , platform scale weigh module C3 , hopper scale load cell NOJ

Weigh Module 0970 500kg C3 NOJ – Load Cell for Platform and Hopper Scales

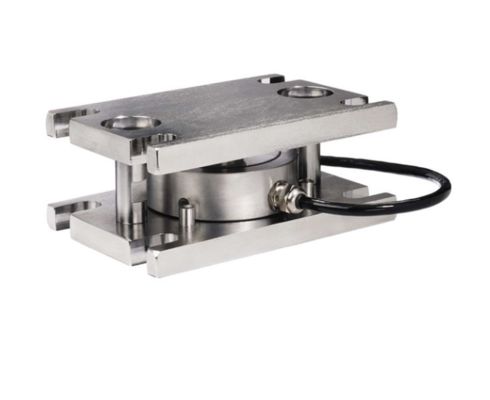

Product Overview

A high-performance compression weigh module designed for precision measurement in industrial weighing applications. The unit features top and base plates that compress under load, enabling direct installation on ground surfaces, piers, or structural beams.

Key Features

Ideal for static & dynamic tanks, hoppers, mixers, and conveyors
High accuracy stainless hermetic load cell for all applications
360° self-checking with dual lift-off & down-stops for safety
Hazardous area approvals and IP68-rated stainless load cell
Lightweight, low-profile design for easy installation
Orientation-independent mounting flexibility

Technical Specifications

Product	Mettler Toledo Load Cell
Maximum Capacity	1,120 lb (500 kg)
Material	WM 316L, LC 17-4PH
Metrology	NTEP III 5M, OIML C3
Load Cell	5m (16.6ft) cable RLC
Accuracy	High
Protection Rating	IP68/69k
Environment	Frequent wash-down / Hygienic
Hazardous Approval	ATEX, FM

Applications

Primarily used in multiples under large platform scales including truck and railroad track scales, as well as tank, hopper, and silo weighing systems. Suitable for capacities ranging from 3 kg to 300 tons.

Corrosion Resistant Construction

Low profile 316 stainless steel design ensures superior corrosion resistance in demanding industrial environments, including frequent wash-down and hygienic applications.
