Name: 15kg Load Cell MT1022 with 1m Cable – Precision Strain Gauge Sensor
Brand: SMARTWEIGH INSTRUMENT CO.,LTD
SKU: Wägezelle MT1022-15kg 1m
Availability: InStock

Startseite Produkte

15kg Load Cell MT1022 with 1m Cable – Precision Strain Gauge Sensor

Produktdetails:

Herkunftsort:	China
Markenname:	Mettler Toledo
Modellnummer:	Wägezelle MT1022-15kg 1m

Zahlung und Versand AGB:

Min Bestellmenge:	1 Satz
Preis:	Verhandlungsfähig
Verpackung Informationen:	Karonenschachtel
Lieferzeit:	10-30 Tage
Versorgungsmaterial-Fähigkeit:	2000 Sets pro Monat

Kontakt

Ausführliche Produkt-Beschreibung

Erzeugnis:	Mettler Toledo Wägezelle	Maximale Kapazität:	33 lb (15 kg)
Material:	aus Aluminium, passiviert	Messtechnik:	NTEP III 5.000d OIML C3
Accuracy:	Standard	Schutzart:	IP67
Plattformgröße (LxW):	350 Millimeter x 350 Millimeter	Konnektivität:	Analog
Kabel:	PVC
Hervorheben:	15kg load cell with strain gauge , MT1022 precision load sensor , Mettler Toledo load cell with cable

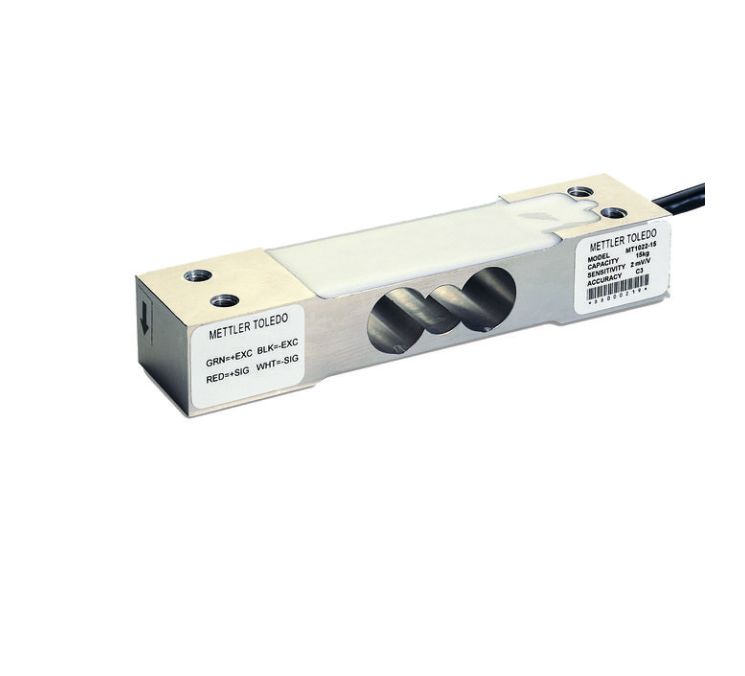

15kg Load Cell MT1022 with 1m Cable – Precision Strain Gauge Sensor

High-Performance Compression Weigh Module

Designed for precise weight measurement in industrial applications, the MT1022 load cell features a compression design where the top plate and base plate compress under load. Ideal for direct installation on ground, piers, or structural beams, this sensor is commonly used in platform scales, tank weighing, and hopper systems.

Key Features

High Accuracy: Off-center compensated design handles platform moments with OIML metrology approvals
Durable Construction: Aluminum passivated material with strain gauge technology for long-term reliability
Hazardous Area Ready: ATEX Zone 1/21/2/22 approvals included as standard
Robust Protection: IP67 rating ensures resistance to dust and water immersion

Technical Specifications

Attribute	Specification
Product	Mettler Toledo Load Cell
Maximum Capacity	33 lb (15 kg)
Material	Aluminum, passivated
Metrology	NTEP III 5,000d OIML C3
Accuracy	Standard
Protection Rating	IP67
Platform Size (LxW)	350 mm x 350 mm
Connectivity	Analog
Cable	PVC

Application Notes

This compression load cell is particularly suited for small platform scales and industrial weighing systems where precise measurement and durability are required. Its standardized approvals make it suitable for a wide range of industrial environments, including hazardous locations.
