C35 WD Inspection System Checkweigher for Wet Harsh Environments

C35 WD Inspection System Checkweigher for Wet Harsh Environments

Produktdetails:
Herkunftsort: China
Markenname: Mettler Toledo
Modellnummer: C35 WD-Kontrollsystem
Zahlung und Versand AGB:
Min Bestellmenge: 1 Satz
Preis: Verhandlungsfähig
Verpackung Informationen: Karonenschachtel
Lieferzeit: 10-30 Tage
Versorgungsmaterial-Fähigkeit: 2000 Sets pro Monat
Kontakt
Ausführliche Produkt-Beschreibung
Produkt: C35 WD-Kontrollsystem Produktfluß: Förderer
Inspektionsanwendung: Gewichtskontrolle Industrie: Chemie, Lebensmittel & Getränke, Pharma & Biotechnologie
Wiegengenauigkeit: ab ±0,1 g Maximales Produktgewicht: 7 kg
Maximale Liniengeschwindigkeit: 90 m/min Maximaler Durchsatz: 250 ppm
Konnektivität: Ethernet TCP/IP Feldbus OPC UA Produktmerkmal: Mittelgroße Pakete, offen, runder Behälter, Kleinmediumspakete, nass
Branchensegment: Bier, Wein und andere alkoholische Getränke Verpackungstyp: Flasche, Bündel, Glas, Tabletts, Unverpackt
Hervorheben:

C35 WD checkweigher for harsh environments

,

Mettler Toledo inspection system

,

wet environment checkweigher inspection system

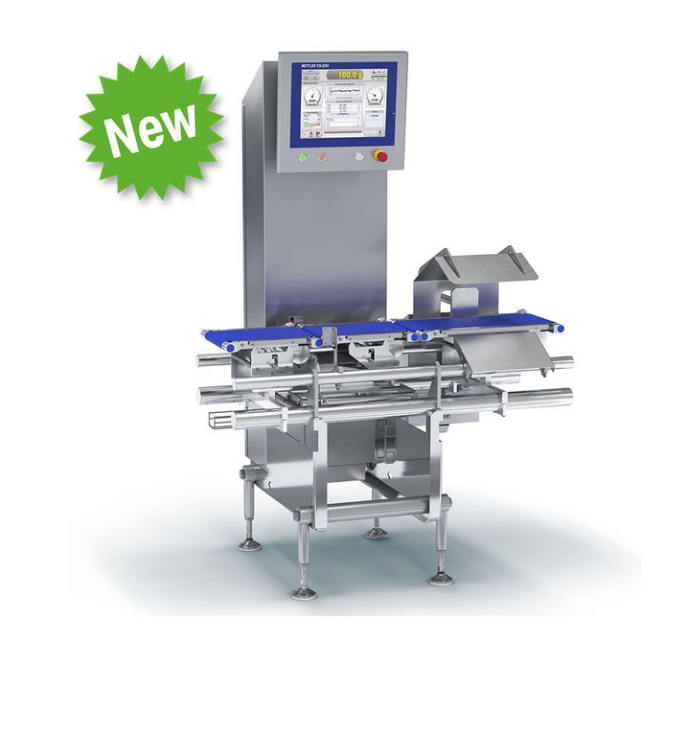

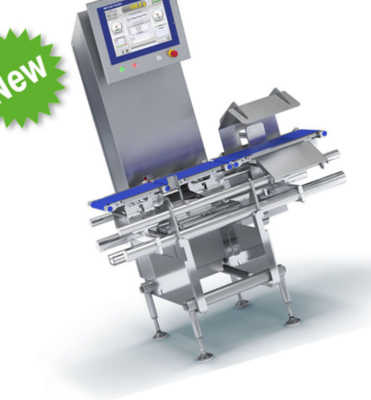

C35 WD Inspection System Checkweigher for Wet Harsh Environments
Product Overview

The Mettler Toledo C35 WD Inspection System is a high-performance, combination quality control solution specifically engineered to thrive in the most demanding washdown environments. By integrating an advanced checkweigher and a highly sensitive metal detector into a single compact system, the C35 WD delivers comprehensive product inspection and protection in wet and harsh production areas.

Key Features
  • Precision and Versatility: Built for harsh environments to withstand high-pressure cleaning with very high precision at fast speeds
  • Highest Accuracy: MID-certified weighing precision helps comply with regulations and reduces product waste
  • Hygienic Design: Easy access for cleaning with sloped surfaces to prevent liquid retention
  • Resilient Construction: Entire IP69-rated system withstands high-pressure cleaning and caustic detergents
Technical Specifications
Attribute Value
Product Flow Conveyor
Weighing Accuracy from ±0.1 g
Max Product Weight 7 Kg
Max Line Speed 90 m/min
Max Throughput 250 ppm
IP Rating IP69
Max Product Width 400 mm
Weighing Technology EMFR
HMI 15" Touchscreen
Industry Applications

Chemical, Food & Beverage, Pharma & Biotech, including:

  • Beer, Wine and Other Alcoholic Beverages
  • Dairy, Meat & Poultry & Seafood
  • Oils and Fats, Pet Food and Animal Feed
  • Ready Meals, Snack Foods
  • Water and other Non-Alcoholic Beverages
Compatible Packaging Types

Bottle, Bundles, Glass, Trays, Unpackaged

C35 WD Inspection System Checkweigher for Wet Harsh Environments 0
