Checkweigher Combinations with Vision Systems

Produktdetails:

Herkunftsort:	China
Model Number:	Checkweigher Combinations with Vision Systems

Zahlung und Versand AGB:

Min Bestellmenge:	1 Satz
Preis:	Verhandlungsfähig
Packaging Details:	Caron box
Lieferzeit:	10-30 Tage
Versorgungsmaterial-Fähigkeit:	2000 Set pro Monat

Kontakt

Ausführliche Produkt-Beschreibung

Produkt:	Checkweigher -Kombinationen mit Vision Systems	Kameras:	2-8x Industrial CMOs (5-20 MP)
Optik:	Telezentrische Linsen (0,1-0,5x Vergrößerung)	Beleuchtung:	Multi-Winkel-LED-Arrays (RGB/W/UV/IR)
Bildrate:	Bis zu 300 fps (produktabhängig)	Auflösung:	0,001g
Dimensionsmessung:	± 0,05 mm	Farbüberprüfung:	150ppm
Oberflächenfehler:	0,1 mm Defekte	Etikettenüberprüfung:	300 ppm
Präsenz/Abwesenheit:	500ppm	Kapazität:	0,1 G-25 kg
Genauigkeit:	± 0,05% fs	Geschwindigkeit:	Bis zu 600 ppm
Hervorheben:	Mettler Toledo checkweigher with X-ray , checkweigher inspection combination load cell , X-ray inspection checkweigher

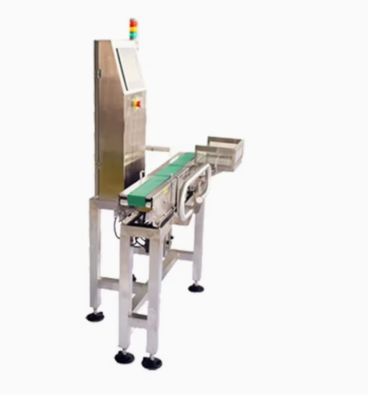

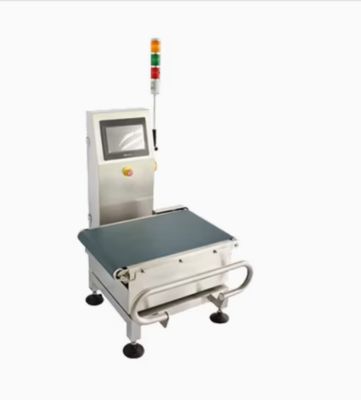

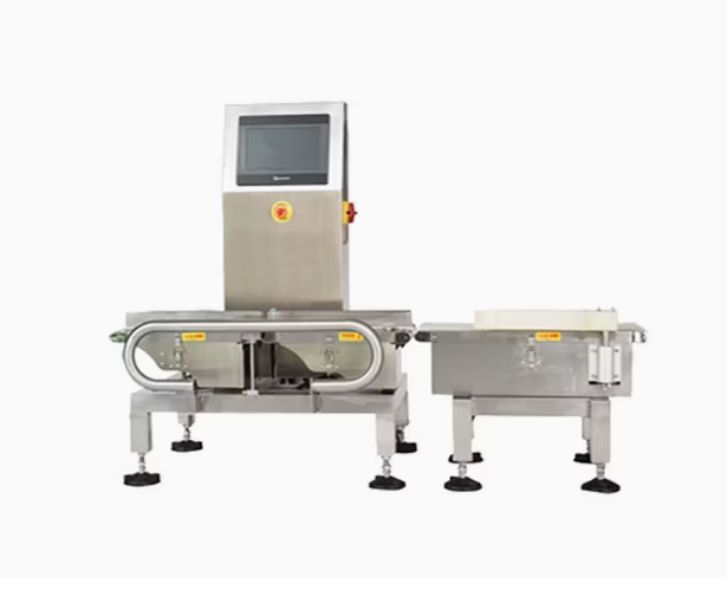

Checkweigher Combinations with Vision Systems

Key Specifications

Attribute	Value
Cameras	2-8x industrial CMOS (5-20MP)
Optics	Telecentric lenses (0.1-0.5X magnification)
Lighting	Multi-angle LED arrays (RGB/W/UV/IR)
Frame Rate	Up to 300fps (product-dependent)
Resolution	0.001g
Dimensional Measurement	±0.05mm
Color Verification	150ppm
Surface Defects	0.1mm defects
Label Verification	300ppm
Presence/Absence	500ppm
Capacity	0.1g-25kg
Accuracy	±0.05% FS
Speed	Up to 600ppm

System Overview

This advanced system combines high-precision dynamic weighing with multi-camera vision inspection for comprehensive quality control.

Machine Architecture

Modular Design: Integrated weighing and vision inspection system
Structural Components:
- Aluminum/stainless steel hybrid frame (Grade 304)
- Compact footprint: 1800(L) × 800(W) × 1400(H) mm
- IP65-rated enclosure (IP69K optional)
- Transparent safety guards with interlock switches

Material Flow Configuration

Infeed Section:
- Servo-driven belt conveyor (5-80 m/min)
- Product singulation system
- Barcode/RFID reader integration point
Inspection Zone:
- High-resolution vision tunnel
- Precision load cell weighing platform
- Multi-spectrum lighting array
Outfeed Section:
- Smart rejection system with 4-way sorting
- Verification sensors for quality tracking

Vision System Specifications

Parameter	Specification
Resolution	0.05mm/pixel at 50m/min
Dimensional Measurement	±0.05mm
Color Verification	150ppm
Surface Defects	0.1mm defects
Label Verification	300ppm
Presence/Absence	500ppm
